Transfer Case Support (DOM W/Bushing) (Atlas)

The Transfer Case Support DOM Support Tube (w/ Bushing) is designed to be used in conjunction with a transfer case support bracket to provide controlled drivetrain support and vibration isolation.

Constructed from heavy-wall DOM tubing and paired with high-durometer polyurethane bushings, this assembly allows necessary drivetrain movement while reducing shock loads transferred into the transfer case, adapters, and mounting components. The bushed connection helps manage torque reaction and chassis flex without creating harsh vibration or binding.

While the design is universal in concept, this component is currently configured for Atlas transfer case applications. Additional support components for other transfer cases will be released in the future.

Compatibility:
This DOM support tube works with the Northwest Fabworks Atlas Park Brake Support and is designed to integrate without interfering with park brake mounting or operation.

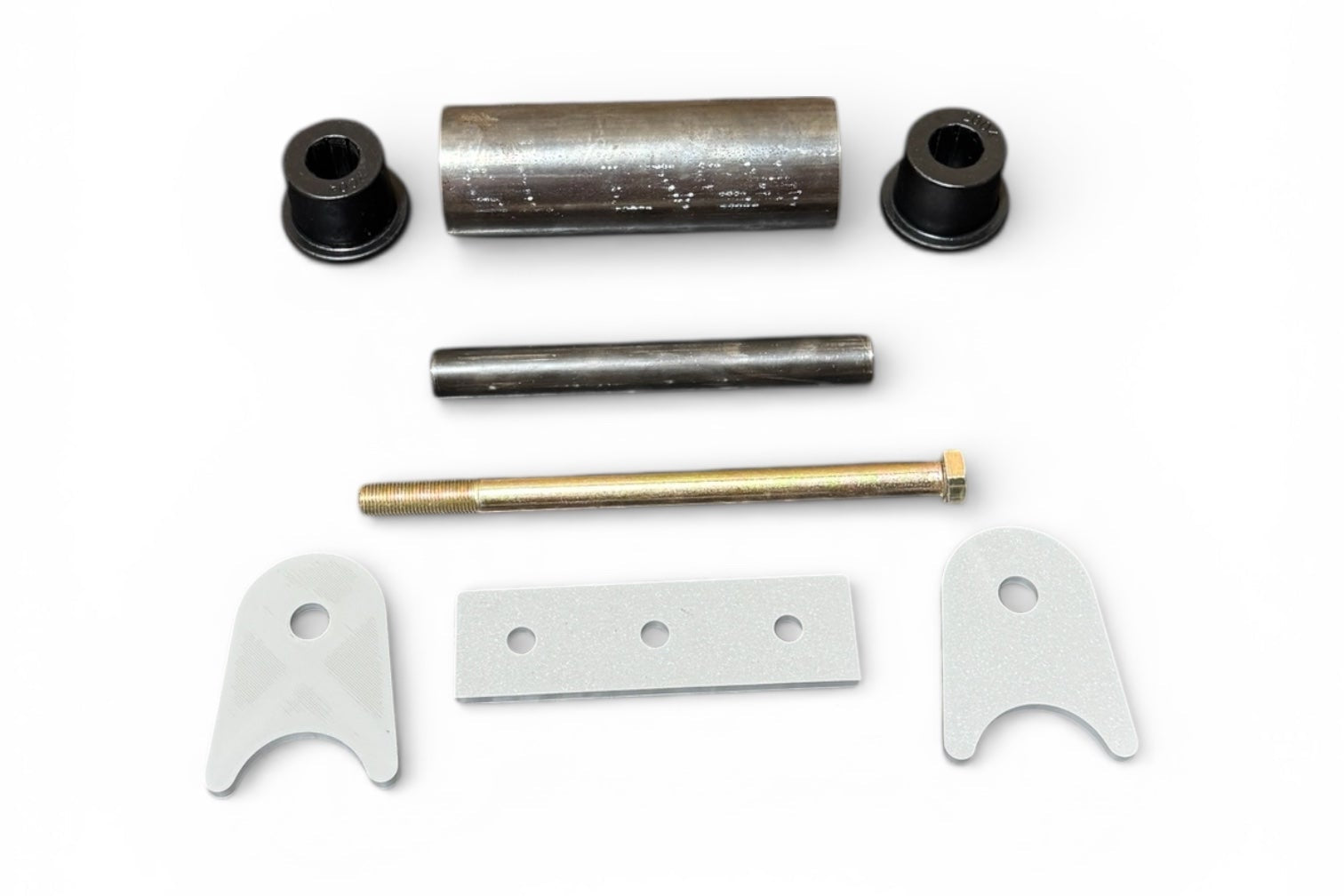

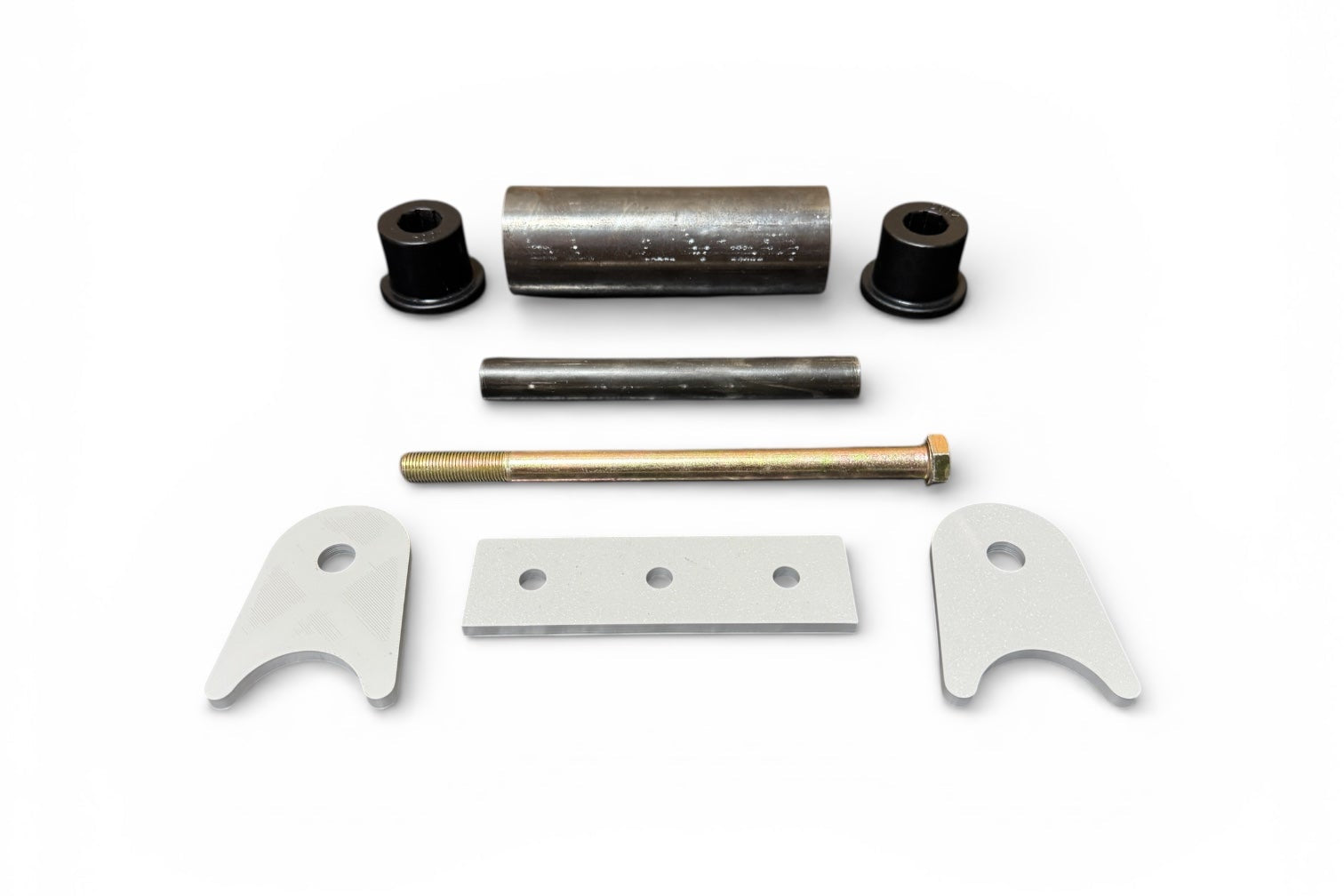

Included in the Kit

1 × 2" × 1/4" wall DOM transfer case support tube
2 × polyurethane transfer case support bushings
1 × 3/4" × 1/8" transfer case support bushing sleeve
2 × transfer case support bushing tabs
1 × flat transfer case support tab
1 × complete hardware pack

Important Notes

This product is not a complete crossmember or support system. Installation may require fabrication depending on vehicle configuration. Compatibility is currently limited to Atlas transfer case applications.
