This is our New Titan Series NP205 Shorty Fixed Output Kit. Fully CNC Machined in house from 8620 Billet Steel, Heat Treated to 58-62 Rockwell, then hard turned to exact bearing tolerances. The weak links of the stock 32 spline output have been eliminated by removing the oiling groove and increasing the shaft diameter for the dual tapered roller bearings. At 3-1/4" Shorter than our Standard Titan Output and Flange Combo, this is an absolute must for all High Horse Power, Short Wheel Base Rigs!

All Kits are set-up in house to ensure proper endplay before being shipped. The Low Gear and needle bearings will need to be swapped over from the stock output before final assembly and install into the NP205.

Included in this kit is:

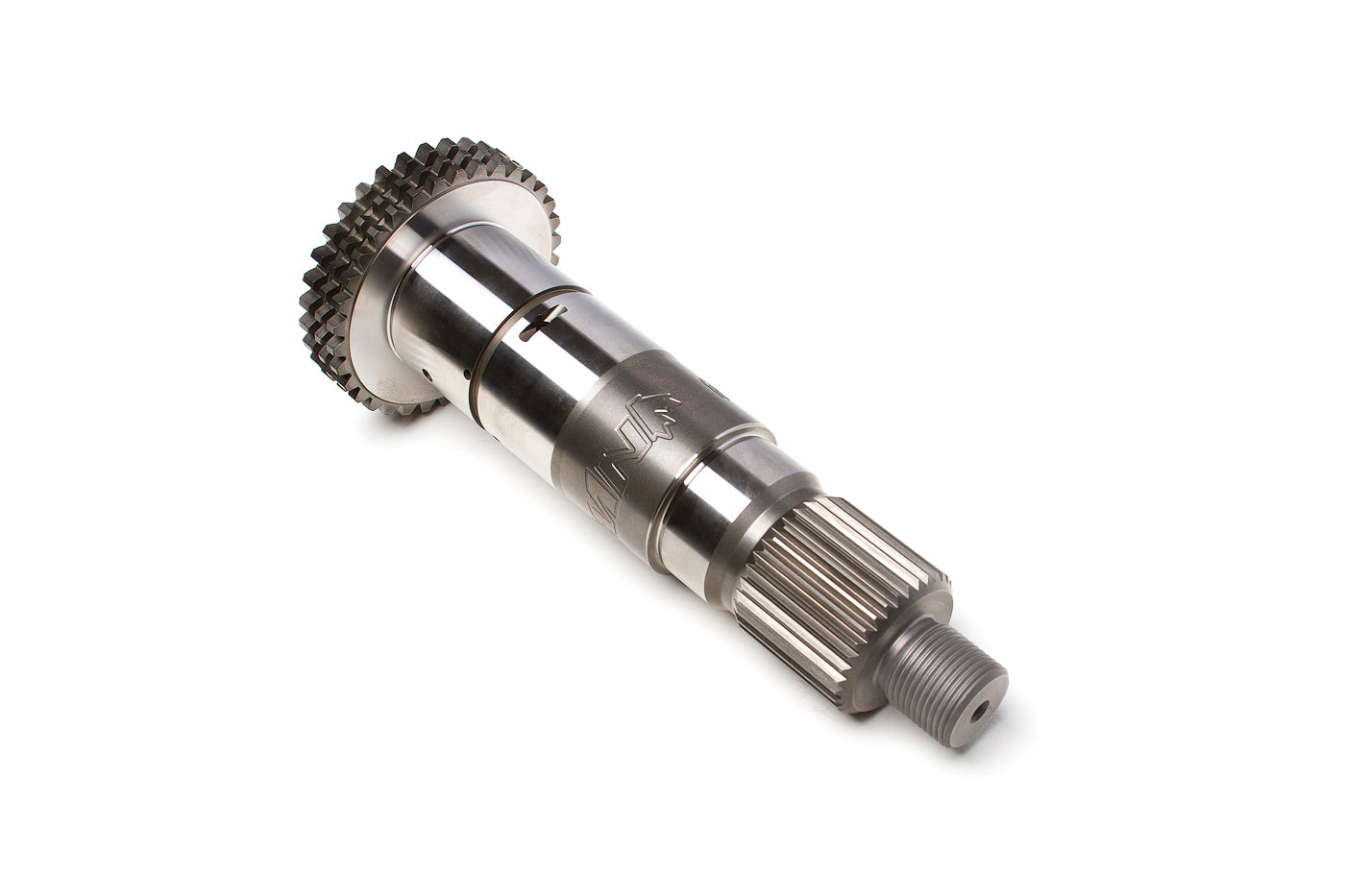

1x 34 Spline Titan Series NP205 Heavy Duty Shorty Output Shaft

1x 6061-T6 Billet Speedometer Housing

2x Tapered Roller Bearings + Shims

1x Thust Plate1x 1300/1400 Series Shorty Billet Output Flange

1x VSS Reluctor Ring

1x GM Vehicle Speed Sensor

1x VSS Wiring Pigtail

1x 8 Bolt Speedometer Housing Gasket

1x Output Shaft Nut

1x Output Seal

8x 3/8 x 7/8 Hex Head Cap Screws

1x 1/4" Barb Breather Fitting

**This kit is compatible with our NP205 Transfer Case Supports

(Does not require billet bearing retainer)

****NP205 Park Brake Kits are NOT compatible with this kit**
